Using Scala 3 with Apache Flink

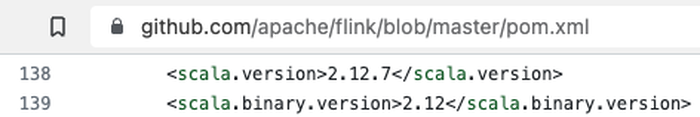

If you have come here, then you probably know that current version of Apache Flink 1.16 Scala API still depends on Scala 2.12. However, the good news is that previous Flink release 1.15 introduced an important change for Scala users, which allows us to use own Scala version via Flink Java API. That means users can now use Scala 2.13 or 3 to write Flink jobs. Earlier, Flink had Scala 2.12 as a mandatory library on application classpath, so one could not use newer version due to version conflicts.
Official Flink Scala API will be still available in future, but will probably be deprecated at some point. It is unclear at this point. Flink community made a decision to not engage with newer Scala version and make Flink to be Scala-free, in terms of user's Scala version choice. Whether it is good or bad for Scala users in general we will going to see in near future. Definitely this choice is good, as it unlocks Flink for newer Scala versions.
For those who wants to use Scala 2.13 or Scala 3 with Flink already today, there are few options available:
- flink-scala-api a fork of Flink Scala bindings originally done by Findify
- Flink4s
Further example in this blog-post is using first option, i.e. flink-scala-api.
Build Job with Scala 3
We are going to create custom Flink Docker image, which can run Scala 3 streaming jobs based on Flink 15.2 version. Docker and containers are used to easily reproduce this example on any environment, however they are not mandatory for Scala 3 usage in general.
First, clone novakov-alexey/flink-sandbox Git repository, which is using SBT to build an example Flink job. So SBT needs to be installed as well. Then package Scala code into self-sufficient (fat) JAR file:
sbt assembly
After running SBT assembly task, you get a JAR file in the target folder:
ls target/scala*/*jar
target/scala-3.1.2/flink-sandbox-assembly-0.1.jar
Build Image with Job included
Make a Dockerfile with the following content:
# Dockerfile
FROM flink:1.15.2
# removing tied Scala 2.12 from the Apache Flink image
RUN rm $FLINK_HOME/lib/flink-scala_2.12-1.15.2.jar
RUN mkdir -p $FLINK_HOME/usrlib
COPY ./target/scala-3.1.2/flink-sandbox-*.jar $FLINK_HOME/usrlib/my-flink-job.jar
Now let's build a Docker image:
docker build -t flink:1.15.2-my-job-scala3 .
Launch Flink Job
Install Flink on the client machine to get Flink CLI around. After Flink installation let's check its version, it should be 1.15.2
flink --version
Version: 1.15.2, Commit ID: 69e8126
Get Kubernetes cluster available in the current shell:
kubectl get nodes
NAME STATUS ROLES AGE VERSION
lima-rancher-desktop Ready control-plane,master 15d v1.23.15+k3s1
Finally, launch a job:
flink run-application -p 3 -t kubernetes-application \
-c org.example.fraud.FraudDetectionJob \
-Dtaskmanager.numberOfTaskSlots=2 \
-Dkubernetes.rest-service.exposed.type=NodePort \
-Dkubernetes.cluster-id=fraud-detection \
-Dkubernetes.container.image=flink:1.15.2-my-job-scala3 \
-Dkubernetes.service-account=flink-service-account \
local:///opt/flink/usrlib/my-flink-job.jar
Checking the result:
kubectl get pod -l app=fraud-detection
NAME READY STATUS RESTARTS AGE
fraud-detection-656b6fcc9c-lhqpl 1/1 Running 0 31m
fraud-detection-taskmanager-1-2 1/1 Running 0 31m
fraud-detection-taskmanager-1-1 1/1 Running 0 31m
Summary
Starting Flink 1.15, it is no longer tightly coupled to Scala, so that one can remove Scala dependency to Scala 2.12 and use newer version. Depends on situation, user can add own Scala version as part of Docker image build or just pack it inside the Flink job fat-JAR file.
How long the official Flink Scala API with version of Scala 2.12 will remain available in future releases? And what will happen with it. In order to answer this question you should keep an eye on Flink communication channels like Slack, Jira and mailing lists.
Even it is going to be removed, users can safely use flink-scala-api from Flink Extended organization. As one of the maintainer, I can guarantee it will be up to date in the future.
